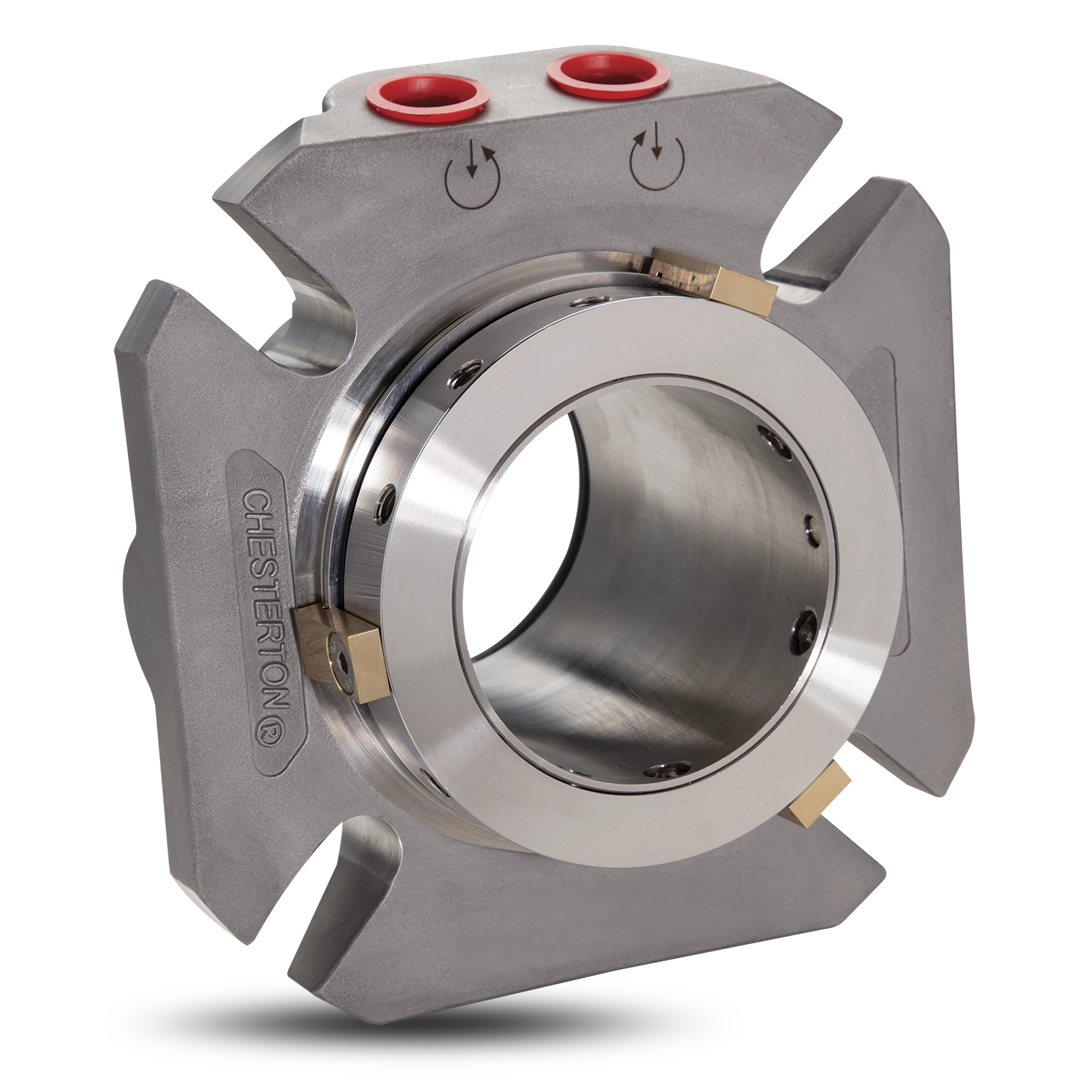

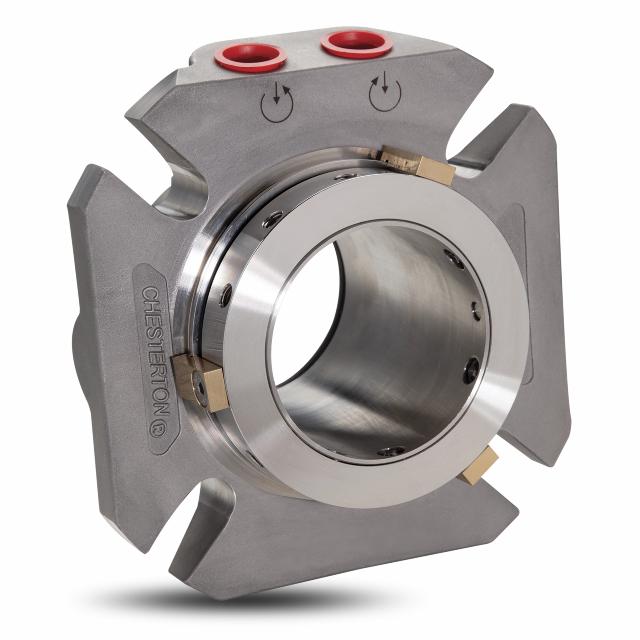

2810
- Heavy-Duty Modular Double Cartridge Seal
Built on Chesterton’s AXIUS™ modular platform for simple configuration and installation plant-wide
The 2810 Double Cartridge Seal offers you the ultimate in seal quality, flexibility, and emissions control. Leveraging Chesterton’s proprietary AXIUS modular platform, the 2810 can be configured with several different face profiles and auxiliary components within a common gland housing. This flexibility allows seal performance to be tailored to a wide range of process conditions. A plant-wide sealing solution, the 2810 uses a geometric double-balanced seal face design. An optimized barrier/buffer channel for enhanced fluid flow provides greater seal reliability even at elevated temperatures.
Product Features
-
- Simplifies configuration and maximizes seal performance with the AXIUS™ modular platform
- Maintains reliability through-out temperature cycling and stop/start processes with monolithic seal faces
- Increases face life and reduces contact stress with cushioned drive pins
- Accommodates axial, radial, and angular shaft movement through unified seal face alignment
- Allows for easy, positive seal identification with ViewIn™ technology
* Balanced Design
* Non-Fretting
* Monolithic Seal Faces
* Stationary Design
* Protected Springs
Technical Data
| Size Range | 25 to 200 (1 to 8) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ASME B73.1, ATEX |
Materials
| Faces | CB, TC, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metallurgy | EN 1.4401 (316SS) |
| Springs | EN 2.4819 (Alloy C-276) |
